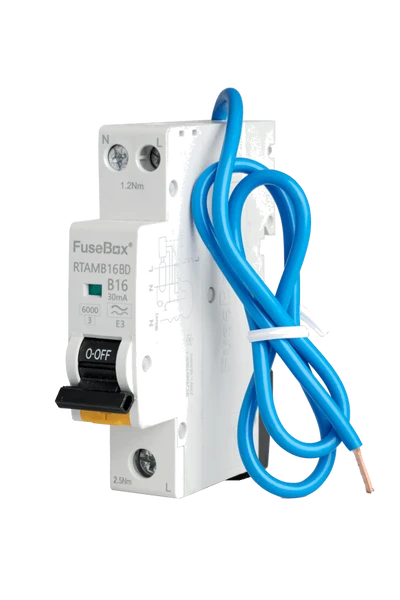

FuseBox - RTAMB16BD - 16A Type B 30mA Type A RCBO 1P+N 6kA

The FuseBox RTAMB16BD is a 16A Type B RCBO designed to provide combined overcurrent and residual current protection within a single compact device for modern electrical installations. This bi‑directional single pole and neutral RCBO (1P+N) integrates both MCB and RCD functionality, protecting circuits against overload, short circuit and earth leakage faults within consumer units. With a 30mA Type A sensitivity, it is suitable for detecting both alternating and pulsating DC residual currents, making it appropriate for circuits supplying modern electrical equipment. The single module format helps maximise available space within distribution boards, supporting efficient layouts where multiple protective devices are required. Its bidirectional design allows supply to be connected from either the top or bottom terminals, offering flexibility during installation and simplifying wiring arrangements. Designed for use across residential, commercial and light industrial environments, the unit provides a 6kA short circuit breaking capacity to ensure reliable performance under fault conditions. DIN rail mounting enables straightforward installation, while the compact form factor supports neat and organised consumer unit configurations. This RCBO offers a practical and dependable solution for installers requiring efficient circuit protection with modern compatibility.

Key Features

• Combined MCB and RCD protection in a single device
• Compact single module design for space-saving installations
• Bidirectional terminals allow flexible supply connection
• Type A protection suitable for modern electrical loads
• Designed for use with FuseBox consumer units
• DIN rail mounting for straightforward installation

Technical Specifications

• Manufacturer: FuseBox
• Model reference: RTAMB16BD
• Rated current: 16A
• Tripping curve: Type B
• Residual current rating: 30mA
• RCD type: Type A
• Number of poles: 1P+N
• Short circuit capacity: 6kA
• Voltage rating: 230V
• Frequency: 50Hz
• Module width: 1 module
• Mounting type: DIN rail
• Bidirectional capability: Yes
