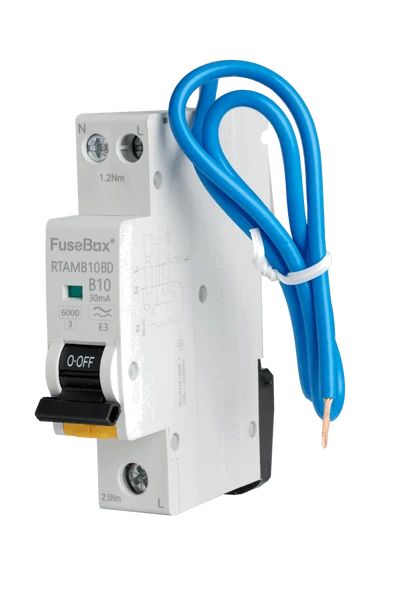

Fusebox RTAMB10BD Bi-Directional MINI 10A B RCBO 1P+N (sw) 30mA 6kA

he FuseBox RTAMB10BD is a 10A Type B RCBO designed to provide combined overcurrent and residual current protection within a single compact unit for modern electrical installations. This bi‑directional single pole and neutral RCBO (1P+N) integrates both MCB and RCD functionality, helping to protect circuits against overload, short circuit and earth leakage faults. With a 30mA Type A sensitivity, it is suitable for detecting both AC and pulsating DC residual currents, making it appropriate for circuits supplying modern electrical equipment. The single module design allows efficient use of space within consumer units, supporting neat and organised board layouts where space is limited. Its bidirectional capability enables flexible installation, allowing supply to be connected from either the top or bottom depending on site requirements. Designed for use in residential, commercial and light industrial environments, the unit offers a 6kA short circuit capacity to ensure reliable fault protection. The straightforward DIN rail mounting and compact format make installation quick and efficient, supporting consistent results across a range of applications. This RCBO provides a practical solution for installers seeking dependable circuit protection combined with space saving design.

Key Features

• Combined MCB and RCD protection in a single device
• Compact single module design for space saving installations
• Bidirectional terminals allow flexible supply connection
• Type A protection suitable for modern electrical loads
• Designed for integration into FuseBox consumer units
• DIN rail mounting for straightforward installation

Technical Specifications

• Manufacturer: FuseBox
• Model reference: RTAMB10BD
• Rated current: 10A
• Tripping curve: Type B
• Residual current rating: 30mA
• RCD type: Type A
• Number of poles: 1P+N
• Short circuit capacity: 6kA
• Voltage rating: 230V
• Frequency: 50Hz
• Module width: 1 module
• Mounting type: DIN rail
• Bidirectional capability: Yes
