Features

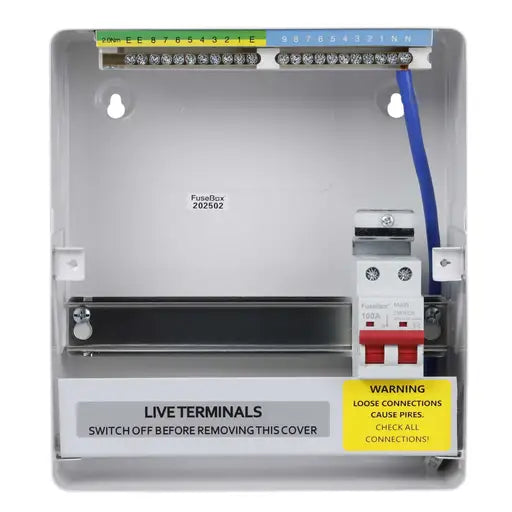

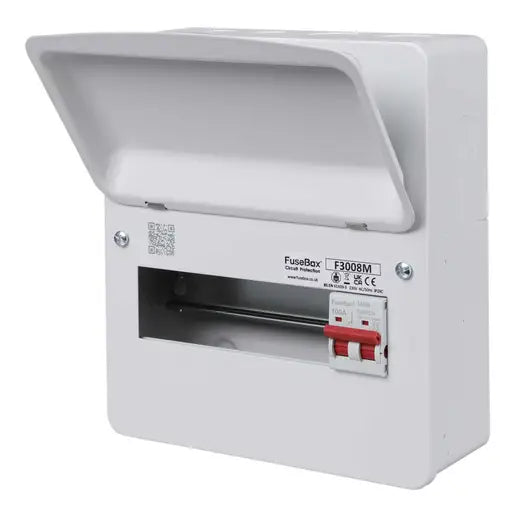

  • Supplied with a 100A main switch, busbar and DIN rail
  • Space for SPD device [sold separately]
  • Captive screws now standard on the front cover
  • Complete with Circuit ID labels
  • F3 series consumer units have upgraded reinforced grommet strip included

Specifications

NUMBER OF USABLE WAYS 8
PART NUMBER  F3008M
WEIGHT (1PC) Kg 2.8
DIMENSIONS (HxWxD)mm 259x234x113
DOUBLE BANK N
TAIL CLAMP COMPATIBLE (ACCF) Y
STANDARD EN 61439-3
RATED VOLTAGE (Un/AC) 230V
FREQUENCY (Hz) 50/60
PROTECTION DEGREE (IP) 2XC
MAXIMUM TERMINAL BAR CAPACITY 16mm ²
TERMINAL BAR TIGHTENING TORQUE (Nm) 2
DEVICE MOUNTING 35mm DIN RAIL
MATERIAL 1mm ELECTRO GALVANISED STEEL (ZINC)
FINISH RAL 9001 POWDER COATED SMOOTH FINISH
KNOCKOUTS SELECTION 20mm - 40mm
ACCESSORY PACK CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP
