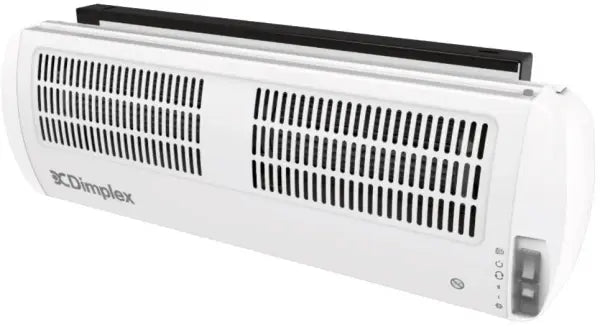

Dimplex AC3W overdoor heater - stop heat loss at the door
Open doors are good for business and bad for heating bills. The Dimplex AC3W is designed to fix that. Installed above a single doorway, it projects a directed curtain of warm air at 6.2m/s, creating a thermal barrier that limits cold air ingress and keeps the entrance comfortable without forcing the door closed on customers. At 50.5dB(A), the AC3W runs quietly enough for retail counters, reception areas, and other customer-facing environments where background noise matters. Fan-only mode means it earns its keep in warmer months too, not just winter.
Smart controls via ConfigR app - thermostat, timer and boost
The AC3W must be commissioned via the free Dimplex ConfigR app before first use: this is a mandatory step. Once done, day-to-day operation is straightforward: onboard rocker switches give direct access to fan-only, half-heat (1.3kW) and full-heat (3kW) modes without returning to the app. The ConfigR app unlocks more precise control - a digitally adjustable thermostat (7–32°C), a seven-day programmable timer, and advance and boost functions that let the heater run to trading hours automatically. A supercapacitor retains the time and date for 3–4 days during a power outage; if exhausted while in Schedule mode, the time is reset via the app. An optional Bluetooth remote (ACWRMC, sold separately) allows wireless operation alongside the app and onboard controls.
Dimplex AC3W specifications and installation - model AC3W
Built for commercial use, the AC3W has a pressed steel fascia with powder coat finish in Traffic White (RAL9016) and two manual reset thermal cut-outs for fail-safe protection. IP21 rated, CE and BEAB approved, and compliant with Lot 20 of the ERP Directive 2025. The wall bracket is included. Important installation note: no cable is supplied, the AC3W connects to fixed premises wiring and requires installation by a qualified electrician. Dimensions: H214 × W624 × D139mm. Weight: 5.1kg. Guarantee: 2 years, extendable to 3 years when registered within 28 days of purchase. Also available as the AC45W 4.5kW for single doors and the AC6W 6kW for double doors.
Key Features of the Dimplex AC3W Air Curtain Over Door Heater 3kW include:
- 3kW over-door heater ideal for single door commercial entrances and large spaces.
- Powerful directional airflow maintains warmth and reduces heat loss.
- Manual rocker switches provide fan-only, half-heat and full-heat control.
- Advanced control via Dimplex ConfigR App for temperature, scheduling and boost modes.
- Digitally controlled electronic thermostat adjustable between 7–32°C.
- EnduroTech motor technology ensures quiet and efficient operation.
- Pressed steel fascia with durable powder-coated finish for professional environments.
- Dual manual reset thermal cut-outs offer fail-safe protection.
- Supplied with wall mounting bracket for fast, secure installation.
- Supercapacitor backup retains time and date for up to four days during power loss.
- Complies with Lot 20 ERP energy efficiency regulations.
- IP21 rating suitable for indoor commercial use
- Output: 1.3/3.0kW
- Height: 214mm
- Width: 624mm
- Depth: 139mm
- Weight: 5.1kg
- Air velocity: 6.2m/s
- Noise: 50.5db(A)
- 2-year guarantee, extendable to 3 years when registered within 28 days of purchase.
