BG NBS81 Nexus Metal Brushed Steel 400W Intelligent Single Dimmer Switch, 2-Way Push On-Off - PU Electrical Wholesaler Ltd

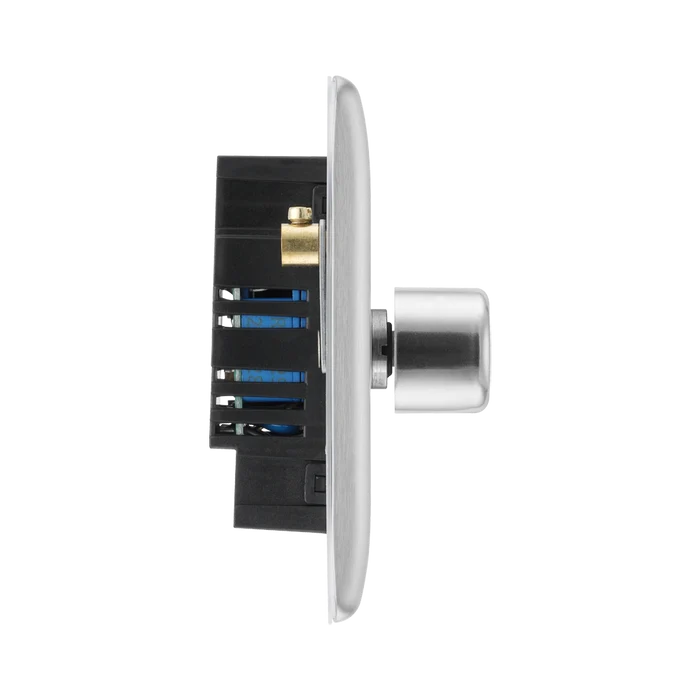

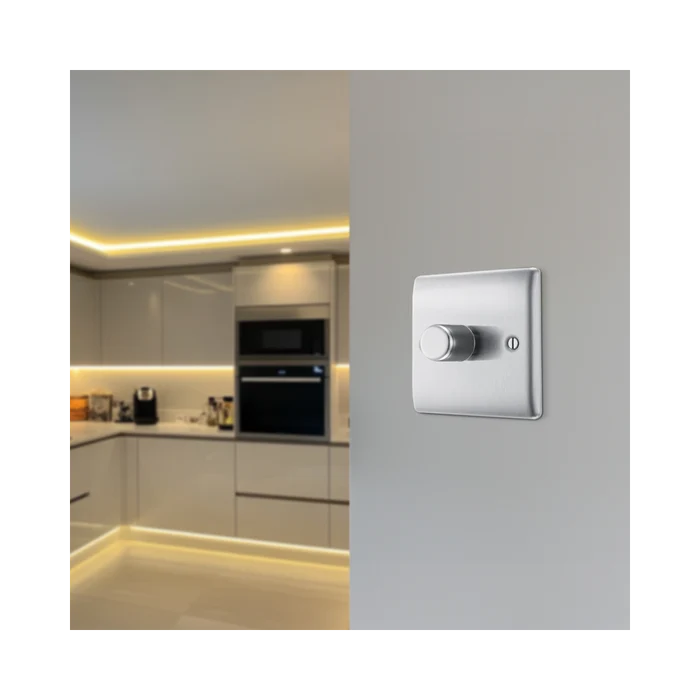

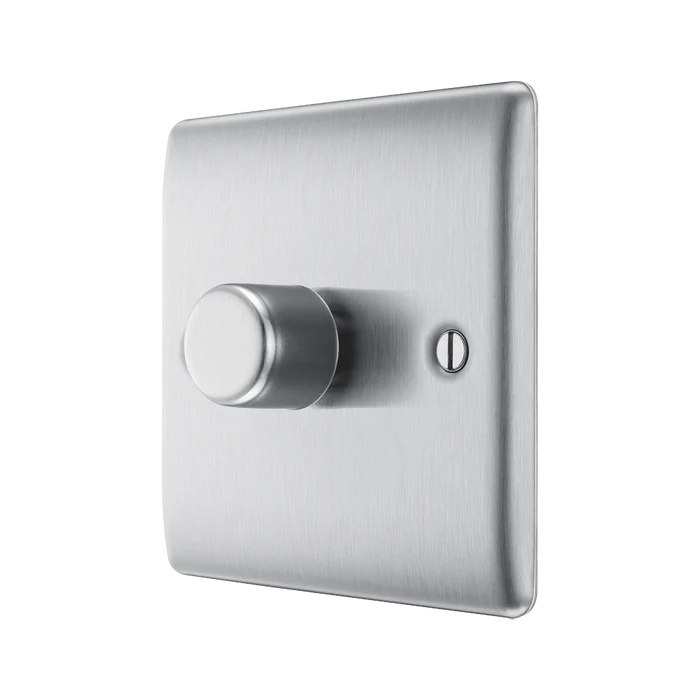

BG NBS81 Nexus Metal Brushed Steel 400W Intelligent Single Dimmer Switch, 2-Way Push On-Off

by BG Electrical
£0
£14.50 - £14.50
£14.50
£14.50 - £14.50
£14.50
(Excluding VAT)
SKU
 More payment options

Intelligent trailing edge dimmers have a lower minimum load than leading edge dimmers, offering greater compatibility for LED, Halogen, CFL and incandescent lamps
Soft start brings the lights to a set level in around 1 second and extends the life of lampsOverload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is correctedSmooth dimming controlSilent operation - no noise when dimmingSupport for lower wattage lamps eliminates flickerRotary dimmer control with push on/off functionFixed integrated plastic gasket to protect metal edges from
moisture
Stylish modern profile with colour matched fixing screwsTechnical Details

Standard(s) BS EN 60669-2-1
Asta Approval License Number 1019
Voltage 200-250V AC
Load Rating (Max/Min per module
Dimmable LED 5-100W
Tungsten/Incandescent 5-200W
Halogen 20-200W
Dimmable Compact Flourescent (CFL) 5-100W
Type Trailing Edge
Terminal Capacity 3 x 1mm ² 2 x 1.5mm ² 1 x 2.5mm ²
RoHS Directive Yes
WEEE Directive Yes
Mounting Box Depth (Min) 25mm
Fixing Centres 60.3mm
Size 86mm x 86mm x 44.3mm



Specification

Finish ii

Brushed/Satin Chrome

Gtin

5050765019118

Insert colour

White

Internal external

Internal

Neon

Yes

Product type

Wiring Accessories

Screwless

No

Unit size

1 Gang

Wiring accessory type

Dimmer
